1.50X2.70

1.50X2.70

1.50X2.10
2.10X2.10
0 out of 5
( There are no reviews yet. )

ر.ق10,500.00

Categories: ,
View cart

Reviews

There are no reviews yet.

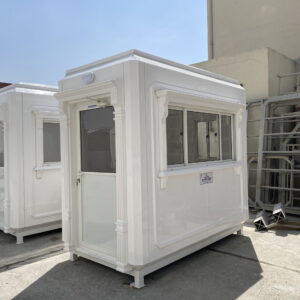

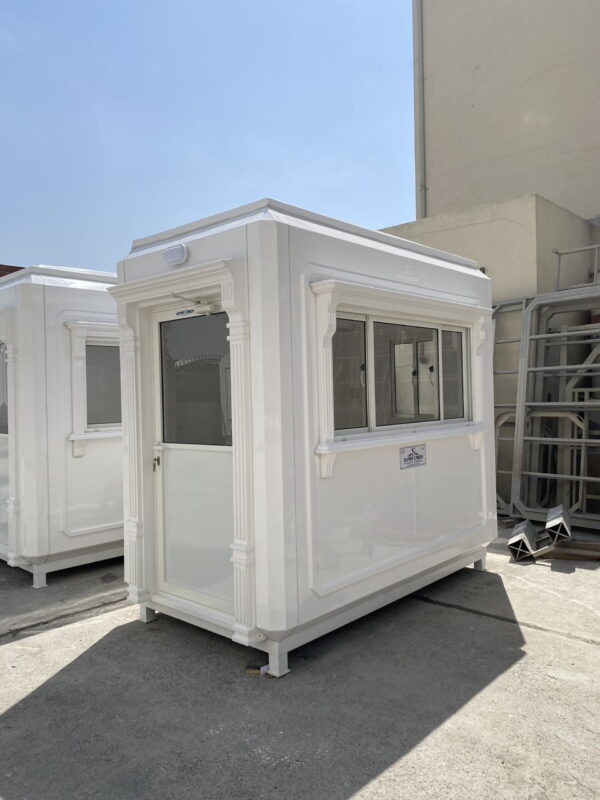

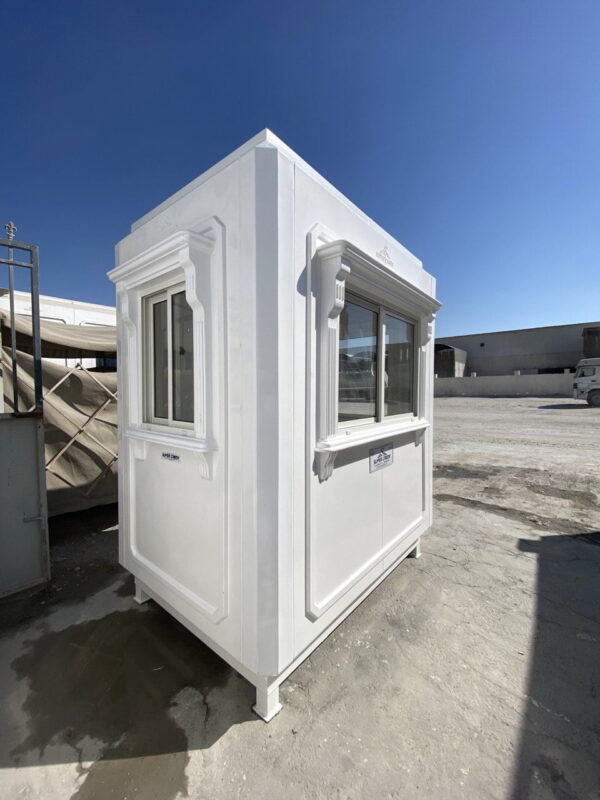

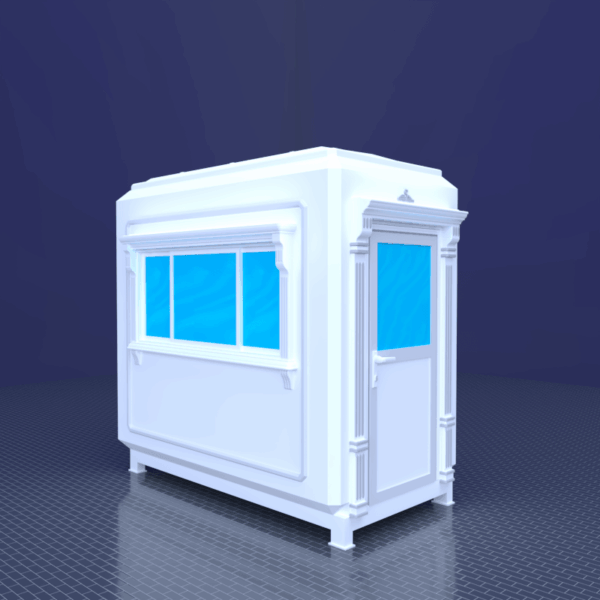

Be the first to review “1.50X2.70”

  • Length 2.70 m
  • Width 1.50m
  • Height 2.40m
  • Area 4.05m2
  • Weight 202kg
  • Color white
  • Modal number F1500270
TECHNICAL DATA
Earthquake conditions 1st Degree
climate conditions 80 Km/Hour (Cabin must be fixed to the ground)
metal parts Fitted with a base of solid ground is composed of (3) layers of Steel, Wood and Vinyl.
Plywood board TS EN 13165 – Polyurethane Foam-Fire reaction class “B”
chassis load capacity 3,333 Kg/m²



BASE
SYSTEM The steel base consists of: – I. BEAM steel 140 mm x 70 mm x 6 mm. – I. BEAM steel 100 mm x 50 mm x 5 mm. – Steel tube 30 mm x 60 mm x 1.5 mm
FLOOR COATING Floorings of cabins are made of film face plywood 18mm thick & Vinyl flooring 4mm thick



OUTER WALL
MOLD SYSTEM Special shaped steel construction and Polyester molds. Cabin is made of Polyester sandwich panel by being pressed inside the molds through. The solvent gas is removed from gelcoat sandwich panel at 50’C.
CABIN MANUFACTURING SYSTEM Being manufactured from fiber glass reinforced polyester material as double-walled polyurethane sandwich panel that is treated inside oven at 50 degrees. After screwing the specially shaped modular panels together, anti-bacterial neutral silicone is added, which protects the cabin a gains water, snow, dust, insects and bacteria. In addition to that it gives the cabin hygienic and long-lasting structure.
OUTER SURFACE COATING Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features.
INNER SURFACE COATING Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features
WALL INSULATION 40 density 35 mm thickness, polyurethane foam is injected



INNER WALL
SYSTEM Produced as special shaped panels that are made of GRP Glass fiber reinforced polyester and injected rigid polyurethane foam.
INNER SURFACE COATING The composite panels are formed from Isophthalic acrylic special bright off white (fluorescent) colour with gelcoat and fiberglass reinforced polyester.
WALL INSULATION 42 density new generation gaseous rigid polyurethane foam is injected with 50 mm thickness high pressure inside the panels, which provides high heat and sound insulation.



GENERAL OUTER WALL SPECIFICATIONS
Outer and inner surfaces of the panels of Super Cabin cabins are manufactured from off-white colored gelcoat material that is resistant for temperatures between +60 degrees and -50 degrees. Outer and inner panels are resistant to weather conditions and have anti-corrosive properties. The cabin panels are washable, stainless, rotproof, and easy to clean.



ROOF
ROOF SYSTEM Being manufactured from fiber glass reinforced polyester material as double-walled polyurethane sandwich panel. After screwing the specially shaped modular roof panels together with sealed bolts, anti-bacterial neutral silicone is added, which protects the cabin a gains water, snow, dust, insects and bacteria. In addition to that it gives the cabin hygienic and long-lasting structure.
ROOF INSULATION 42 densities with 50 mm thickness Polyurethane foam is injected.
INNER SURFACE COATING Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features.
OUTER SURFACE COATING Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features.



DOORS
OUTER DOOR As per the customer’s desire. With the calculation of the price difference. UPVC Profile white colour, with a 15-year warranty. Door closer. (9O0mm x 1860mm} (7oomm x 1860mm) Aluminum Profile white colour. doors with fiber sheet 4 mm Door closer. (900mm x 1860mm} (700mm x 1860mm)



WINDOWS
WINDOW & GLASS As per the customer’s desire. With the calculation of the price difference. UPVC Profile white colour, with a 15-year warranty. Double glass thickness 6 + 6 + 6 mm. Aluminum Profile white colour. 6 mm thickness door glass is used. ReflectiveColored



PAINTS
METAL PARTS Chassis paint used by the brand (Hempel) the same paint used for ships of 3 layers and one of the rust-resistant and 2 of white paint



“ELECTRIC INSTALLATION (Gathered on inside corner covering)
CABLE – Cable size 2.5mm Cable for Light, Socket & Dynamo – Cable size 6mm for AC 2T – Cable size 4mm for AC 1T/1.5T & Heater – Cable size 10mm for mean line
FUSES HAGER brands made in UK, 32 Ampere fuses are used
LIGHTING FITTINGS LED light from high-quality materials and conforms to the latest specification (KAHRAMAA Qatar).
SOCKETS AND SWITCHES TENBY brands high-quality materials and conforms to the latest specification (KAHRAMAA Qatar).



SANITARY SYSTEM(surface mounted)
SANITARY WARE high-quality materials and conforms to the latest specification (KAHRAMAA Qatar).
CLEAN WATER PIPE high-quality materials and conforms to the latest specification (KAHRAMAA Qatar).
WASTE WATER PIPE high-quality materials and conforms to the latest specification (KAHRAMAA Qatar).



OPTIONEL ACCESSORIES
Fully prepared for any accessories. As per the client’s desire



Warranty period
– The warranty period on manufacturing defects for three years, and any maintenance work after the expiration of the warranty, at the expense of the customer – If the nameplate bearing the name and logo (Super Cabin) is removed from the product, warranty coverage expires.
